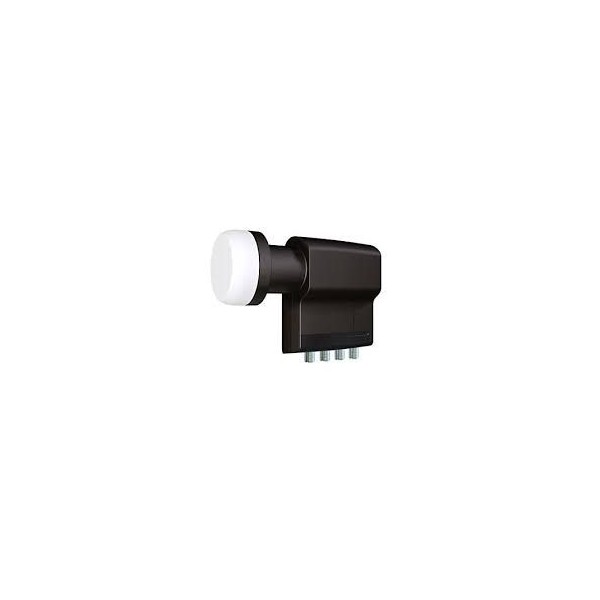

- LNB 4 USCITE HVHV INVERTO HOME PRO IDLH-QTL410-HMPRO-OPN cod. IV5444
AUHVHVINVERTOHMPRO
Listino:
SCONTO 0%
Prezzo: 31,40 € tasse incl.| Technical specifications | |
|---|---|
| Input frequency range | 10.7 GHz ~ 12.75 GHz |
| Output frequency range |
950 MHz ~ 2150 MHz |
| Low band LO frequency |
9.75 GHz |
| High band LO frequency |
10.6 GHz |
| Noise figure |
0.3 dB typ. (0.7 dB max.) |
| LO frequency accuracy @ 25° C |
±500 kHz max. |
| LO temperature drift | ±1.0 MHz max. |
| LO phase noise @ 10 kHz |
-80 dBc/Hz max. |
| Conversion gain |
55 dB min. |
| Gain ripple (over 26 MHz bandwidth) | ±0.75 dB |
| Gain variation (over full band) | ±4 dB |
| Image rejection |
40 dB min. |
| 3th order intermodulation - ICP3 | 10 dBm min. |
| 1 dB compression point (@ output) | 0 dBm min. |
| Cross polarization isolation | 22 dB min. |
| Output VSWR |
2.5 : 1 |
| In band spurious level | -60 dBm max. |
| Current consumption |
240 mA max. @ 11 VDC ~ 20 VDC |
| Operating temperature |
-30 °C ~ +60 °C |
| Output impedance (LNB2) |
75 O |
| Output connector type |
F-type (female) |
| Dish F/D ratio | 0.6 |
| Weight | 224 g |
| Logistical info | |
| Packaging dimensions (W x D x H) | 15.5 cm x 9.1 cm x 7.6 cm |
| Packaging weight | 0.284 kg |
| Quantity per Carton | 60 pcs |
| Carton dimensions (W x D x H) | 64.0 cm x 47.5 cm x 25.0 cm |
| Carton weight | 18.3 kg |
| Quantity per pallet | 32 ctns/plt |
