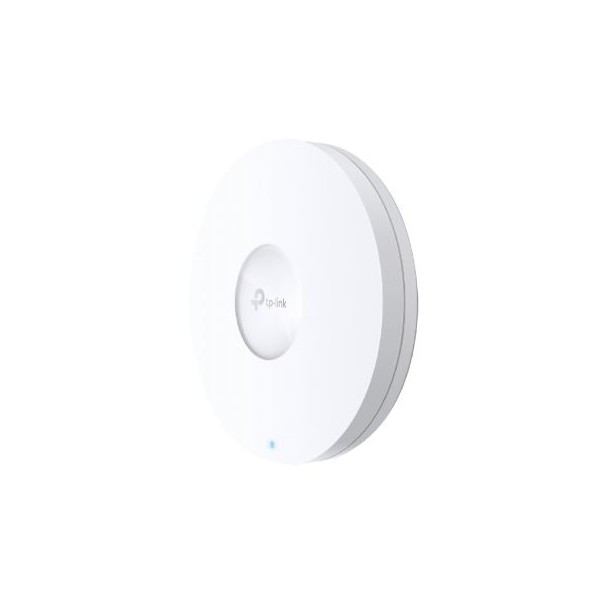

- Access point wi-fi 6 EAP620 HD AX1800 EAP620 HD - Ax1800 access point wi-fi 6 dual-band con montaggio a soffitto
KON59745325
Listino:
SCONTO 0%
Prezzo: 228,99 € tasse incl.| Interfaccia | 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE and Passive PoE) |
|---|---|
| Tasto | Reset |
| Alimentazione | • 802.3at PoE • 48 V Passive PoE • 12 V / 1.5 A DC |
| Consumo energetico | • EU: 14.4 W (For PoE); 13.1 W (for DC) • US: 14.9 W (For PoE); 13.4 W (for DC) |
| Dimensioni ( L x P x A ) | 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm) |
| Antenna | Internal Omni Antenna • 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 5 dBi |
| Tipo di montaggio | • Ceiling /Wall Mounting (Kits included) • Junction Box Mounting |
| Coverage | 140?(1500 ft²)*** |
|---|---|
| Concurrent Clients | 1,020+** |
| Standard wireless | IEEE 802.11ax/ac/n/g/b/a |
| Frequenza | 2.4 GHz and 5 GHz |
| Signal rate | • 5 GHz: Up to 1201 Mbps† • 2.4 GHz: Up to 574 Mbps† |
| Funzionalità wireless | • 1024-QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • MU-MIMO • Seamless Roaming? • Omada Mesh? • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client |
| Sicurezza wireless | • Captive Portal Authentication? • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Potenza di trasmissione | • CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz band1/2, EIRP) <25 dBm (5 GHz band3) • FCC: <25 dBm (2.4 GHz) <25 dBm (5 GHz) |
| Omada App | Yes |
|---|---|
| Centralized Management | • Omada Cloud-Based Controller (Supported by EAP620 HD v2.0 and above) • Omada Hardware Controller OC300 • Omada Hardware Controller OC200 • Omada Software Controller |
| Cloud Access | Yes, through • OC300 • OC200 • Omada Software Controller • Omada Cloud-Based Controller (Supported by EAP620 HD v2.0 and above) |
| Avvisi e-mail | Yes |
| LED ON/OFF | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| Log di sistema locale e remoto | Local/Remote Syslog |
| SSH | Yes |
| Gestione web-based | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller (Supported by EAP620 HD v2.0 and above) |
| Certificazione | CE, FCC, RoHS |
|---|---|
| Contenuto della confezione | • EAP620 HD • Power Adapter • Ceiling/Wall Mounting Kits • Installation Guide |
| Requisiti di sistema | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Ambiente | • Operating Temperature: 0–40 ? (32–104 ?) • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
